Characteristics

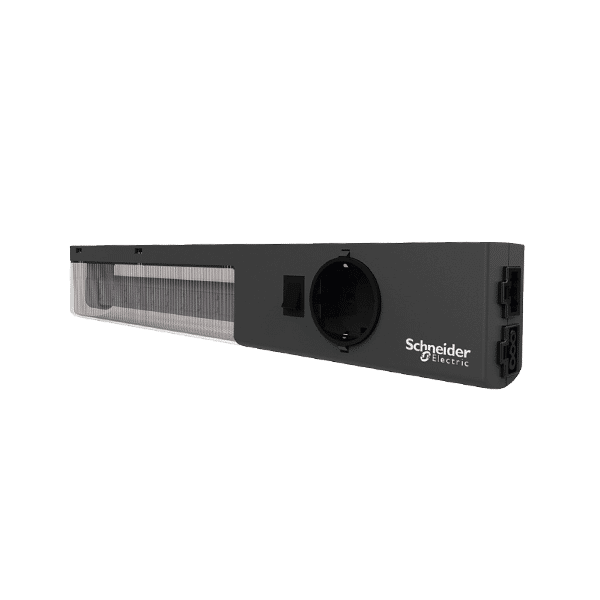

LED lamps designed for optimal lifetime, energy consumption, space and accessibility in the enclosure.
ASA Polycarbonate casing, Black RAL 9005.
Three fixing options.
Built-in switch.
Power consumption: 10 W
LED service life: 25000 h*
Lamps with socket: Class I
Lamps without socket: Class II
RoHS and Reach compliant.
Operating temperature: -16°C to +65°C
3m black or orange power cable (to be ordered separately)
1.5m black or orange interconnection cable with quick connectors (to be ordered separately)
Supply
1 lamp and fixing elements.
Protection Rating
IP20 according to IEC60529
| Type / Voltage | Multi-fixing Lamp | Power | Power Cable 3m | Interconnector Cable 1.5m |
| No socket 120 / 230 Vac | LAMLD | 10 W | LAM3M | LAM1M |
| No socket, with motion sensor 230 Vac | LAMLDD | 10 W | LAM3M | LAM1M |
| No socket, 24-48 Vdc | LAMLDVDC | 10 W | LAM3MDC | LAM1M |
| With SCHUKO socket 120 / 230 Vac | LAMLDS | 10 W | LAM3M | LAM1M |
| Cost-effective LED lamps | ||||
| 120/230 Vac | LAMT5LD1 | 5 W | included | included |
| 120/230 Vac | LAMT5LD2 | 10 W | included | included |
| 24/48 Vdc | LAMT5LD1VDC | 5 W | included | included |
Elen Enclosures is highly experienced in the supply, specification and determination of ideal solutions suited to every enclosure application. Offering a comprehensive range of solutions in enclosures, cabinets, panel cooling and related accessories.
