Metallic Floor Standing Cabinets
SF Mild Steel Modular Cabinets
Modular steel cabinet system, joinable side-by-side or back-to-back to form continuous suite of cabinets.
The structure comprises:
Robust welded upper and lower frames of 1-1.5mm profiles with 18 bends providing the strongest frame profile on the market.
4 Vertical uprights screwed together with solid steel integral corner connectors.
Corners fixed by 8 screws for easy assembly.
A double system of perforated squares and holes in the profile allows accessories to be installed using self-tapping TORX T30 M6 screws or cage nuts.
Load-bearing of the basic frame structure up to 1000 kg distributed in its volume.
Totally symmetric design of the profiles allows attachment of doors, side panels and rear cover on any plane.
Floor-Standing
Metallic
Mild Steel powder-coated
Non-Corrosive
SM Mild Steel Monobloc Cabinets
Body constructed from a single piece frame with welded rear panel.
Front designed with a rigid frame for strength with welded corners.
Internal perforated rails allow depth adjustment of the mounting plate at 25mm pitch.
Door with reinforcement frame and standard comfort lever handle with a large choice of lock inserts. Door with 4 locking points and continuous foamed in polyurethane gasket is easily removable / reversible by means of easy click hinge system.
Glazed door version with 4mm toughened safety glass.
1-part galvanised gland entry plate.
Modular plinth of 100mm or 200mm height.
A large variety of accessories for automation, distribution and 19” rack applications.
Floor-Standing
Metallic
Mild Steel powder-coated
Non-Corrosive
SD Mild Steel Control Desks
Human-Machine-Interface control desk made from welded folded steel 1-1.5mm powder-coated.
Available in 4 widths with fixed or removable rear panel options.
Full accessibility provided from the front (no central upright or cross member).
Easily removable and reversible door opening to 120°.
Locking by 3 mm double-bar lock (other inserts available)
Desk lid equipped with a pneumatic opening stay, opening to 75°.
Perforated reinforcement rails with a pitch of 25 mm
Control desk equipped with rails and brackets allowing depth adjustment of the mounting plate.
2-part adjustable cable gland plate with polyurethane gasket.
M8 x 18 mm earth studs.
Floor-Standing
Metallic
Mild Steel powder-coated
Non-Corrosive
ENUX Mild Steel Industrial PC Cabinets
E NUX cabinet structure complete with HSLA high-strength low-alloy sheet steel uprights.
Doors, roof, bottom, and rear panel manufactured from sheet steel.
Front section composed of: Steel upper door with plexiglass window for monitor, 3mm double bar lock.
Pull-out Keyboard with tilting front, and adjustable mouse pad support.
Sealed section to separate keyboard compartment & enclosure, with cable gland for keyboard and mouse, bi-adhesive tape for keyboard installation and monitor support.
Lower plain front door, 3mm double bar lock.
Floor-Standing
Metallic
Mild Steel powder-coated
Non-Corrosive
ABACUS Mild Steel 19″ Data Cabinets
Server Cabinet manufactured from high-strength low-alloy sheet steel (HSLA), with unique profiles.
2 version:
- Front glazed door (with tempered glass window), and removable rear panel.
- Front and rear ventilated door.
The frame structure is assembled by means of 8 resistance screws.
Door closure by lever-operated double bar locking system with key lock insert and two locking points.
Removable roof with ventilation louvers and cable entry plate.
Removable rear panel with quarter turns locking system (for version).
Removable side panels with quarter turns locking system.
4 front and rear 19” rack profiles.
4 levelling feet as standard, or plinth option.
Floor-Standing
Metallic
Mild Steel powder-coated
Non-Corrosive

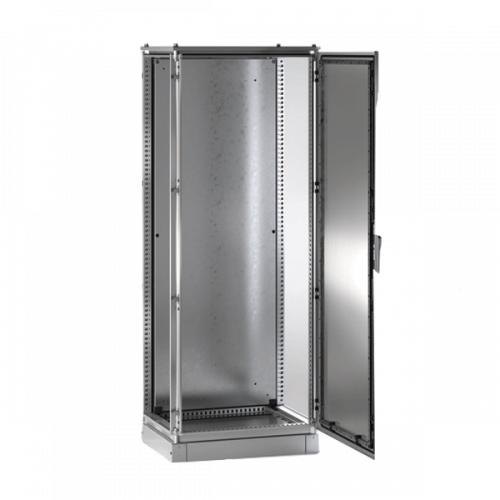

ENUX-X Stainless Steel Modular Cabinets
Modular cabinet with structure manufactured from unique profiles of stainless steel 304L (316L on request). Structural frame is constructed by continuous closed welding free of sharp edges.
Roof, door and rear panel manufactured from satin finish stainless steel sheet 304L (316L on request).
Door with formed corners is provided with a stiffening tubular frame, silicone foam seal and lever-handle with 3 mm double bar locking system.
Lower frame manufactured from stainless steel sheet 304L (316L on request) includes galvanised steel modular and adjustable cable entry plate with sealing gasket.
Cabinets can be joined side-by-side in suites.
Plinths of height 100mm or 200mm are available.
Floor-Standing
Metallic
Stainless Steel
Corrosive
EMOX-X Stainless Steel Monobloc Cabinets
Structure manufactured from 1.5 mm thick 304L stainless steel sheet with removable rear panel (316L on request).
Door manufactured from 304L stainless steel sheet with stiffening frame (316L on request).
Door with continuous silicone foam seal and tubular stiffening frame.
Mounting plate manufactured from 2.5 mm thick galvanised sheet steel.
Hinges in AISI316L stainless steel.
Plinths of height 100mm or 200mm are available.
Floor-Standing
Metallic
Stainless Steel
Corrosive
ZBX Stainless Steel Control Desks
Control Desk manufactured from 1.5 mm thick 304L stainless steel sheet (316L on request).
Mounting plate of 2.5 mm galvanized steel mounted in the rear.
Upper cover with galvanised reinforcement profiles and mechanical door-stay.
Sealing by continuous silicone foam seal.
Door and cover locking by 3mm double bar locks.
Adjustable cable entry plate system.
Floor-Standing
Metallic
Stainless Steel
Corrosive
